Hammersley Sphere

Out:

C:\Users\ERIC\Documents\pygamma_gallery\docsource\sphinx\examples\hammersleypoints\plot_hamm_points_sphere.py:61: UserWarning: Matplotlib is currently using agg, which is a non-GUI backend, so cannot show the figure.
  plt.show()

import numpy as np
from matplotlib import pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

def return_point(m, n, p):
    """
    m is the index number of the Hammersley point to calculate
    n is the maximun number of points
    p is the order of the Hammersley point, 1,2,3,4,... etc
    l is the power of x to go out to and is hard coded to 10 in this example
    :return type double
    """

    if p == 1:
        return m / float(n)

    v = 0.0

    for j in range(10, -1, -1):
        num = m // p ** j

        if num > 0:
            m -= num * p ** j
            v += num / (p ** (j + 1))

    return (v)

if __name__ == "__main__":

    npts = 500
    h_1 = np.zeros(npts)

    h_7 = np.zeros(npts)

    for m in range(npts):
        h_1[m] = return_point(m, npts, 1)
        h_7[m] = return_point(m, npts, 7)

    phirad = h_1 * 2.0 * np.pi
    h7 = 2.0 * h_7 - 1.0  # map from [0,1] to [-1,1]
    st = np.sqrt(1.0 - h7 * h7)

    xxx = st * np.cos(phirad)
    yyy = st * np.sin(phirad)
    zzz = h7

    fig = plt.figure()
    ax = fig.gca(projection='3d')

    ax.plot(xxx, yyy, zzz, '.')
    ax.set_xticks([-1.0, -0.5, 0.0, 0.5, 1.0]);
    ax.set_yticks([-1.0, -0.5, 0.0, 0.5, 1.0]);
    ax.set_zticks([-1.0, -0.5, 0.0, 0.5, 1.0]);

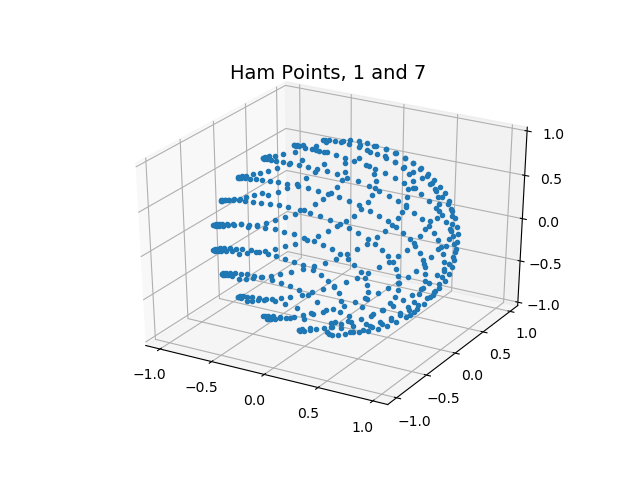

    ax.set_title("Ham Points, 1 and 7", fontsize=14)

    plt.show()
